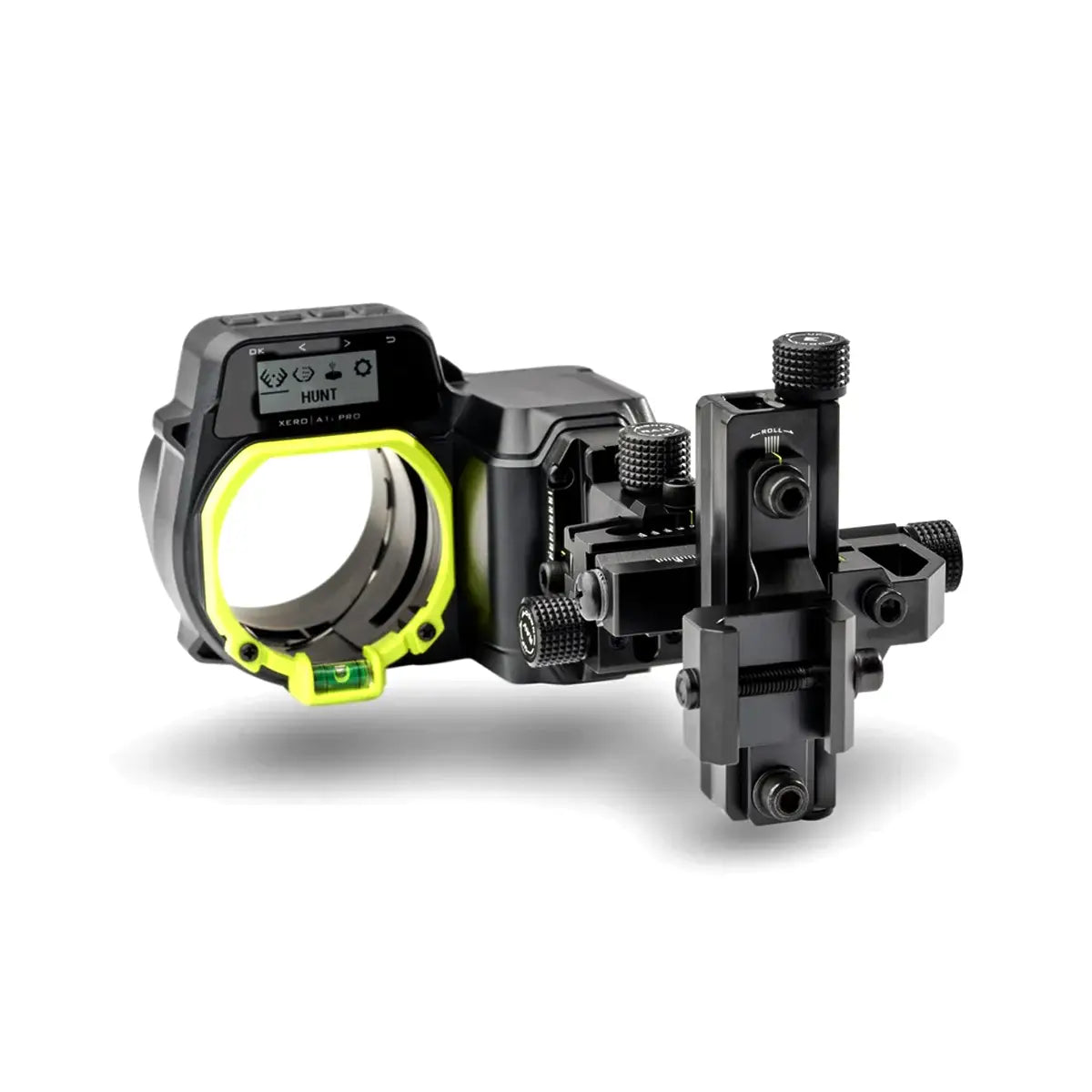

Garmin XERO A1i Pro Sight (Hoyt In-Line Picatinny)

The Garmin XERO A1i Pro Sight, now designed specifically for Hoyt Archery's In-Line Sight System, takes precision and performance to the next level. With its innovative Picatinny rail mount system, this advanced rangefinding bow sight aligns your quiver closer and more in-line with your bow for improved balance and accuracy.

Key Features of the Garmin XERO A1i Pro Sight

• Auto-Ranging Digital Sight: Automatically calculates the distance to your target for quick and accurate shots.
• Dual-Color LED Pins: Instantly find the right distance with red or green LED pins, eliminating the need for a physical pin stack.
• Micro-Adjustable Rails: Fine-tune windage, elevation, and laser reticle alignment with precision for the easiest and most accurate setup yet.
• Custom Pin Stack Creation: Automatically generates a pin stack to the estimated maximum distance for your bow based on arrow speed, draw length, and arrow diameter.
• Apex Indicator: Displays a flashing pin above the aiming point to show the estimated apex of your arrow's flight.
• Quick Detach Design: Easily remove the sight for travel or setup, making it convenient and hassle-free.
• Long Battery Life: Enjoy up to 1 year of battery life (approximately 25,000 ranges) with 2 included lithium AAA batteries, so you can focus on hunting without worrying about power.
• Customizable Arrow Profiles: Save multiple arrow configurations with pin settings, allowing you to switch between practice and hunting setups in seconds.
• Laser Locate Feature: Pair with a compatible Garmin GPS device (sold separately) to mark the exact location of your target when the shot or range was taken.
• Laser Range Finder: Get instant, angle-compensated distances to game up to 100 yards away or reflective targets up to 300 yards.
• Dynamic Level: View leveling information right next to the pin with variable sensitivity based on shot distance, ensuring your shot is perfectly level.
• Xtra Distance Mode: Extend your sight’s range by setting it to show pins for farther distances.
• Silent Trigger Button: Mount the trigger button in the most convenient spot for your grip to minimize movement at rest or full draw.

Specifications

• Physical Dimensions: 9.2" x 5.0" x 3.7" (233.8 x 127.2 x 94.7 mm) (includes device and mount)
• Display Size: 1.00" W x 0.42" H (2.5 x 1.1 cm); 2.0" diagonal (5.0 cm)
• Display Resolution: 160 x 68 pixels
• Display Type: Sunlight-visible, transflective memory-in-pixel (MIP)
• Weight: 18.0 oz (510.3 g) (includes device and mount)
• Battery Type: 2 lithium AAA batteries (included)
• Battery Life: Up to 1 year
• Water Rating: IPX7
• Pin Diameters: .007" and larger for red, .009" and larger for green
• Operating Range: -20°C (-4°F) to 60°C (140°F)
• Glass Lens Coating:
  • Target side: Anti-reflective, water-repellent, and easy to clean
  • Archer side: 20% reflective, water-repellent, and easy to clean
• Light Projection: No visible light is projected toward the target
• Magnification: None
• Pin Brightness: Controlled by an ambient light sensor or manual adjustment

What’s Included

• Garmin XERO A1i Pro Bow Sight (right- or left-handed, depending on the version selected)
• Mount
• Protective bag
• 2 AAA lithium batteries
• 3 Allen hex keys
• 2 screws
• Grip tape
• MicroUSB cable
• Documentation
